Submersible Motors 8″ (200) mm

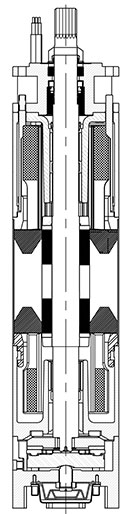

Components
Stainsteel Rotor
Rotor are dynamically balanced for smooth and vibration free Operation and protected with Anticorrosive Paints.
Carbon Thrust Brg.
Kisbarry with individual tilting pads provided for protection against wearand tear. Design of Bearings is suitable for higher Thrust capacity
Wound Stator
Made up fully Stainless Steel with low loss Magnetic steel. with SS flans and wound with PVC Winding Wire
Mechanical Seal
Heavy Duty SiC v/s Carbon Mechanical Seal used for protection.
