Horizontal Openwell Pumps
Salient Features
- Design for wide voltage range.
- Manufactured using a much sophisticated control process to ensure reliability & Long life of the pump.
- Design for underwater Application.
- Light weight& easy to install.
Material Of Construction
Stator Tube : Cast Iron FG 200 Grade.
Thrust Bearing : Carbon
Impeller : Cast iron FG 200
Pump Volute : Cast Iron FG 200 Grade.
Application
- Domestic water supply-Apartment, Building & Hotel
- Fountains.
- Canels& Rivers
- Irrigation from openwell where water level fluctuate.
Technical Specification
Head Range : 12 to 60 Meter
Discharge Range : 65 to 2344 LPM
Motor Rating : 3.0HP to 5HP (Single Phase) 3.0HP to 20HP (Three Phase)
Voltage Range : 140V to 250V (1 Phase) 200V to 440V (3 Phase)

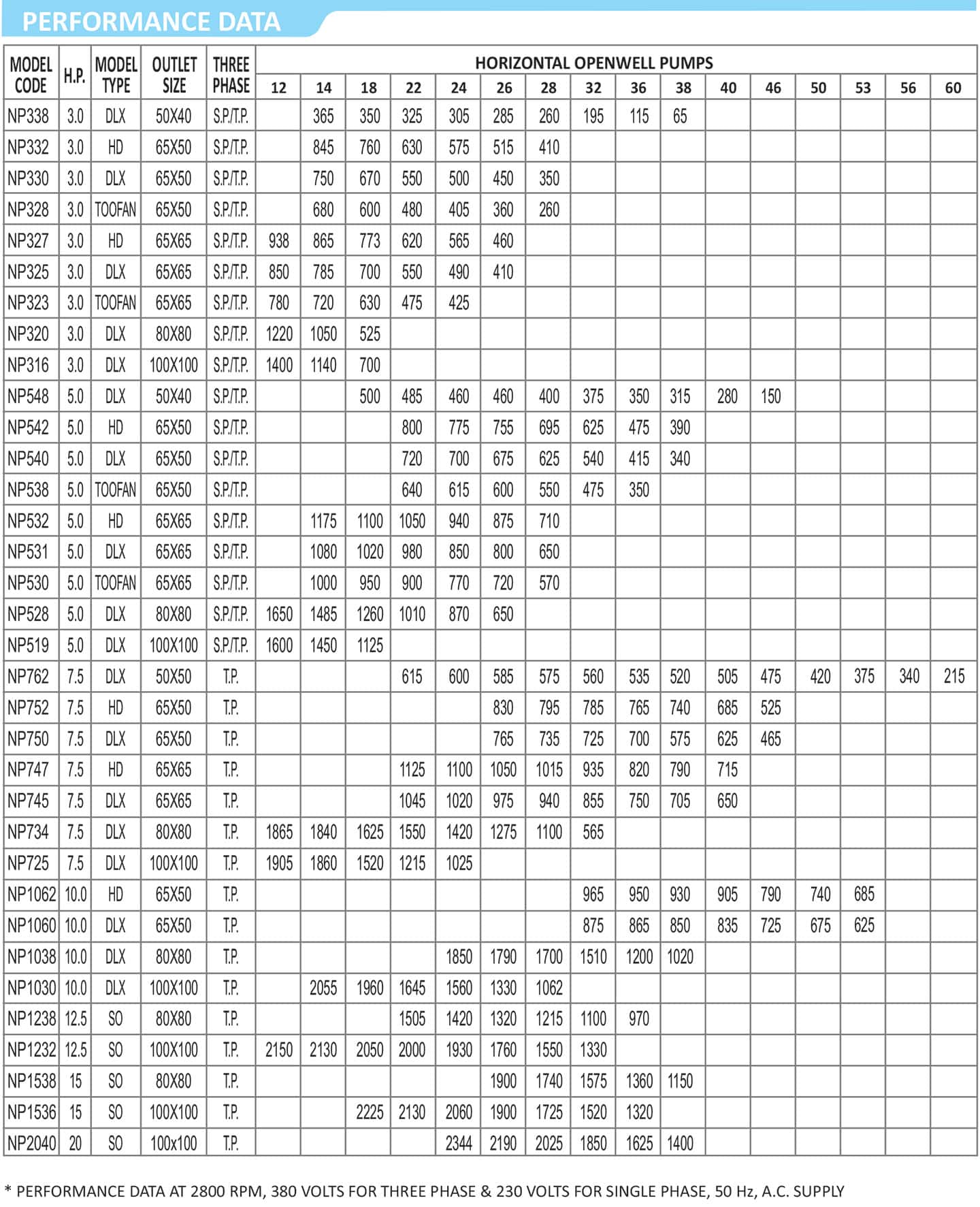

Technical Data For Openwell Pumpset
