Stainless Steel SOLAR Submersible Pumps
Neom range of submersible pumps are made of corrosion and abrasion resistant stainless – steel and have been developed in accordance with state of art technology. The pumps are manufactured to highest standard for energy efficiency, dependable performance, rugged construcon, and long service life.
Salient Features
- Stainless steel SS304 construction designed and built for year of trouble-free operation
- Comply with MNRE/BIS standards.
- Mounting specification according to NEMA standards.
- High quality shaft bearing providing low friction and high wear resistance
- Heavy-duty stainless-steel impellers & diffusers ensuring optimal performance
- High efficiency electrical design for solar application
- Rotors are painted with special epoxy paint for longer life.
- All the rotating parts are balance in precision grade to reduce noise & vibration
- Carbon V/S stainless steel thrust bearing are provided to withstand high thrust load
- Winding wires are wrapped with superior polymer/PVC to withstand wide voltage fluctuation.
Application
- Crop and plant irrigation
- Drinking and cooking water supply
- Swimming pools
- Industrial water processing
- Fountains, irrigation for Farming
Material Of Construction
MOTOR
Motor Sha : Fully Stainless Steel AISI 410
Stamping : Silicon Steel
Casng Parts : SS or Cast Iron FG200 grade.
Thrust Bearing : Carbon V/s Stainless Steel
Copper : EC grade min 99.90%
PUMP
Pump Sha : Fully Stainless Steel AISI410
Sucon Housing : SS 304
NRV Housing : SS304
Impeller/Diffuser: SS304
Neck ring : NBR
Techanical Specification
Motor Type : AC & PMSM
Motor Ratings: V4-1 Hp to 7.5 Hp (Available in AC & PMSM)
V6-3 Hp to 30HP
Head Range : 10 to 300 meter
Flow Range : 8 to 200 m3/h

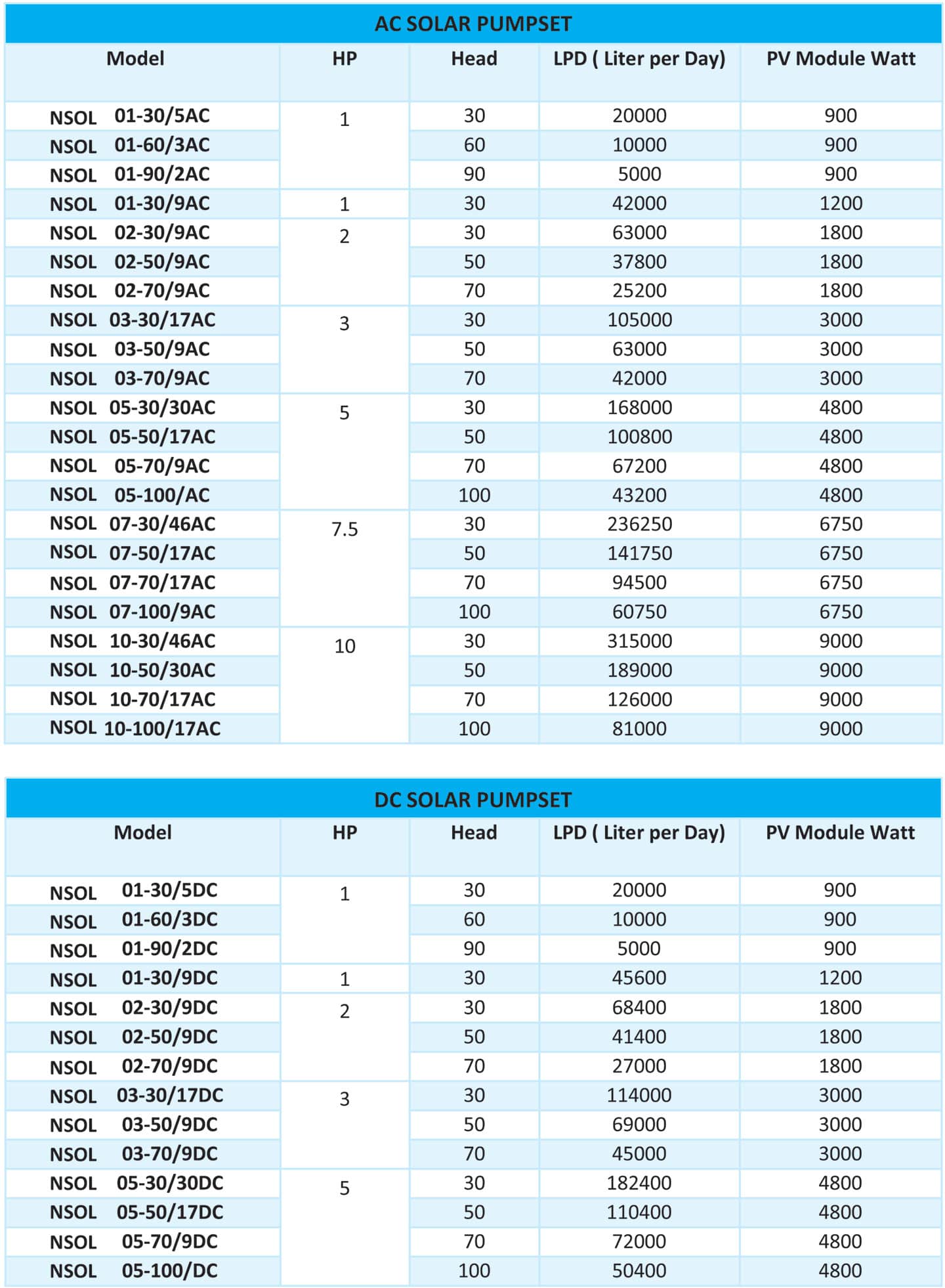

Stainless-Steel Solar Submersible Pumps Performance Specificaon
