3 Core Rubber Submersible Flate Cable
Cable Standard
DIN VDE 0281 part 810,
IEC 245 & BS 6007, BS 6899
Conductor : Bare Burch Copper S:8130
Insulation : PVC As Per IS:5831
Outer Sheath: PVC As Per IS:5831
Standard Packing
Coils 100, 200, 300, 500, 1000 m
Silent Features
Temp range -40⁰ C to +90⁰ C
Exceponal long term performance
Excellent Impact Resistant
Excellent Weather Resistant
Application
Ideal for irrigaon Pumps, Drinking Water Supply Pumps, Submersible Pump Motor Power Supply.

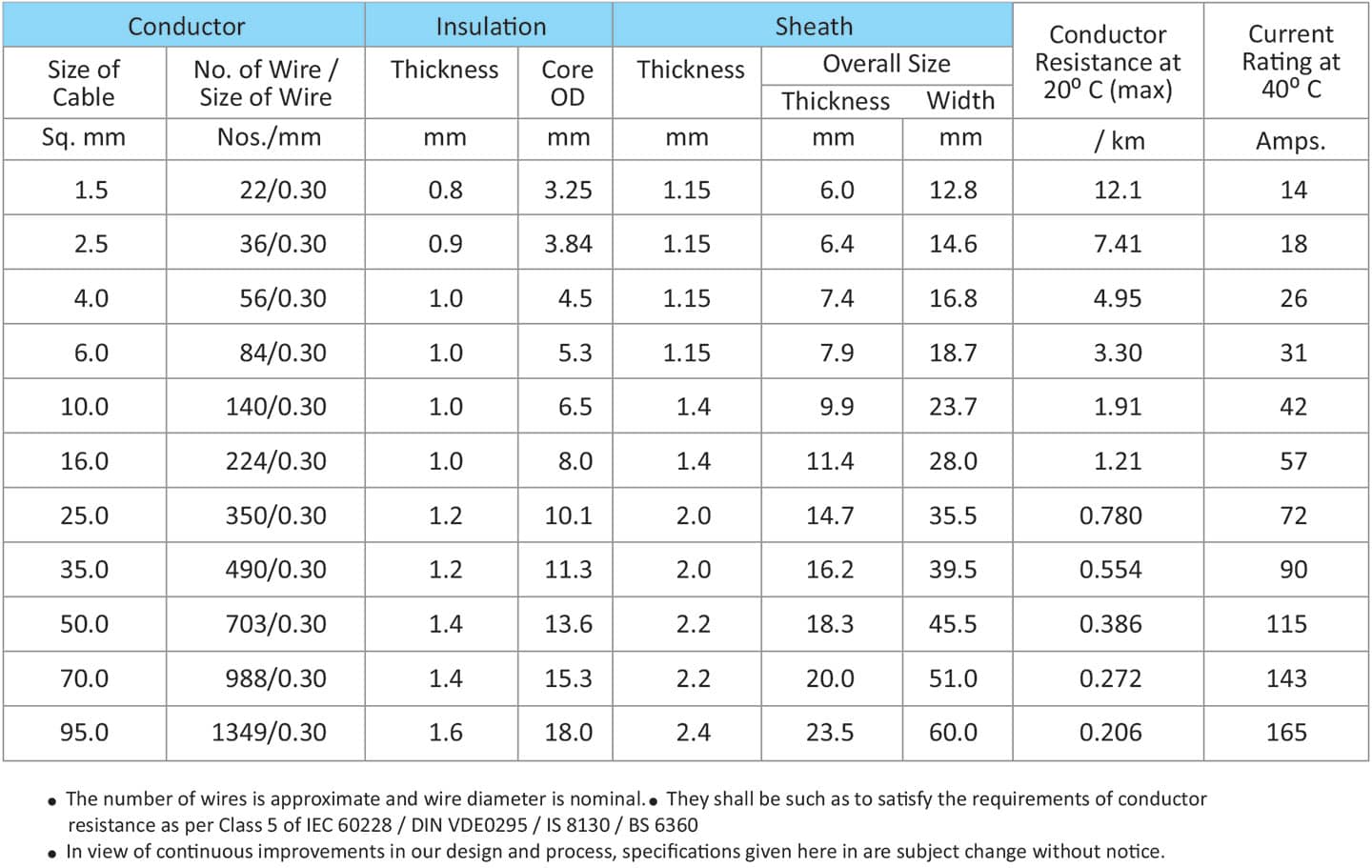

Technical Data
Operang Temp : 10⁰ C to max. 90⁰C
Nominal Voltage : 1.1 KV
Test Voltage : 3.0 KV
Min. Bending Radius : 6 x cable diameter
Core Color
As Per IEC:60227 – Black, Light Blue, Brown
As Per IS:694:2010 – Red, Yellow, Blue
